Kubernetes(k8s) Architecture - Distributed System

Kubernetes is a distributed system that horizontally scales containers across multiple physical hosts termed Nodes. This produces fault-tolerant deployments which adapt to conditions such as Node resource pressure, instability, and elevated external traffic levels. If one Node suffers an outage, Kubernetes can reschedule your containers onto neighboring healthy Nodes.

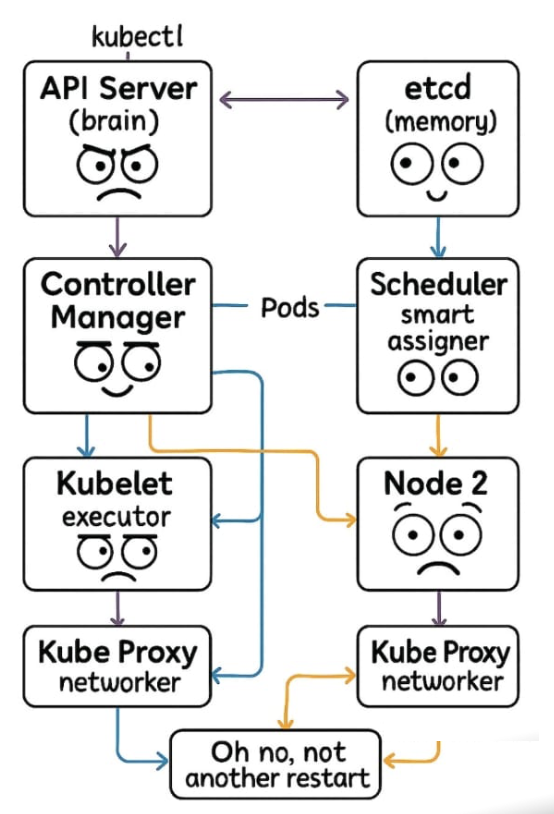

Let's stop treating Kubernetes(k8s) as black box. You can't troubleshoot what you don't understand. So, here's how Kubernetes actually works - from the inside out.

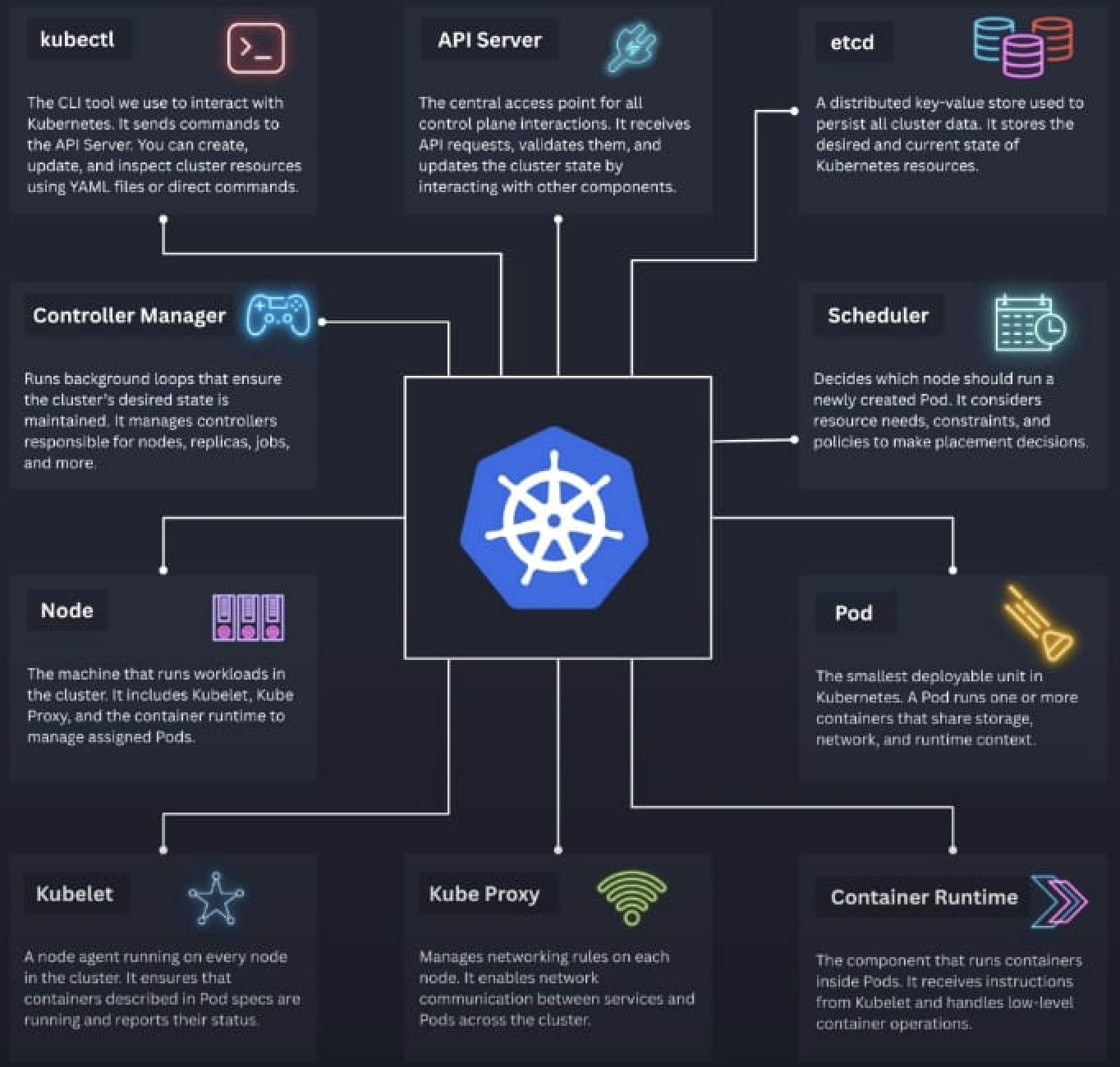

API Server - The Brain

The central access point for all control plane interactions. It receives API requests, validates them, and updates the cluster state by interacting with other components. Every kubectl command you run hits this. It does following:

If your API Server is down, K8s is blind. You can't schedule, scale, or patch anything.

etcd - The Memory

A distributed key value store used to persist all cluster data. It stores the desired and current state of Kuberates resources.Think of it like a version-controlled database of your entire cluster's state. It is used as:

etcd corruption = cluster amnesia.

Controller Manager - The Conductor

Runs background loops that ensure the cluster's desired state is maintained, It manages controllers responsible for nodes, replicas, jobs, and more. It watches the orchestra, makes sure everyone plays the right note. It does following:

If something disappears, controller brings it back, That's reconciliation.

Scheduler - The Smart Assigner

Decides which node should run a newly created Pod. It considers resource needs, constraints, and policies to make placement decisions. Decides where your pod runs. It does following:

No scheduler = no new workloads

Kubelet - The Node Agent

A node agent running on every noce in the cluster. It ensures that containers described in Pod specs are running and reports their status. Lives inside every worker node. It does following:

If kubelet dies, that node is essentially offline to the cluster.

Kube Proxy - The Network Bridge

Manages networking rules on each node. It enables network communication between services and Pods across the cluster. Handles service-to-pod networking. It does following:

Broken kube-proxy = your service exists, but can't talk to pods.

Summary and Conclusions

Kubernetes isn't magic. It's just a well-coordinated distributed system with clearly defined tools.
